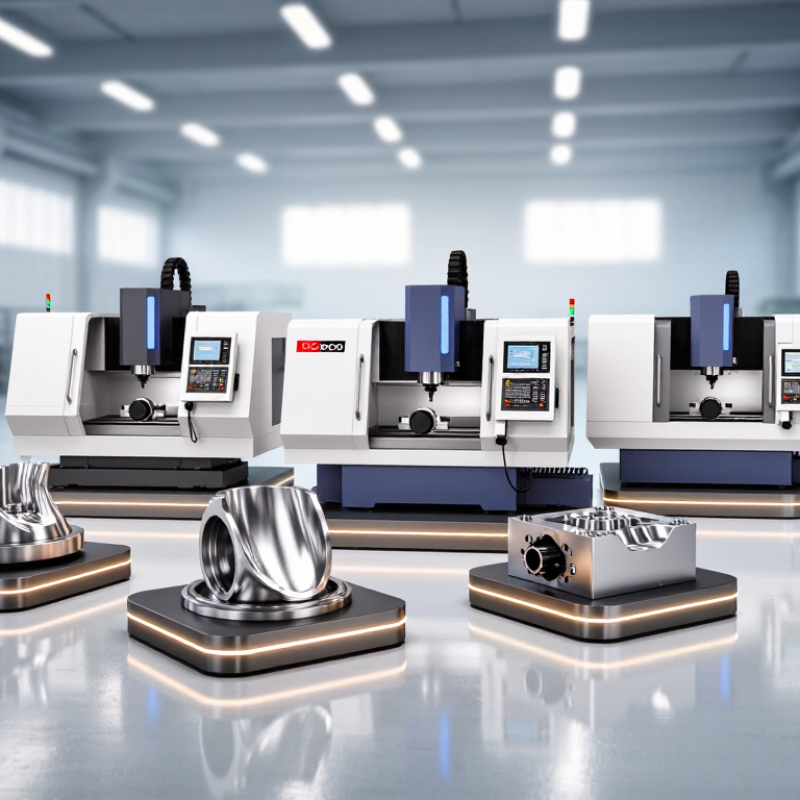

Top 5th Axis CNC Machines for Global Buyers?

Global buyers are reassessing precision, automation, and lifecycle cost when selecting a 5th Axis Cnc Machine. The decision reaches far beyond spindle speed or table size. It affects setup time, operator workload, surface quality, and after-sales risk.

Grand View Research values the global CNC machine market at approximately USD 83.8 billion in 2023. Its forecast indicates continued growth through 2030, supported by aerospace, automotive, medical, and energy manufacturing. MarketsandMarkets also identifies multi-axis machining as an important route toward complex-part production. These findings explain the growing interest in compact, high-accuracy five-axis platforms.

Yet market growth does not guarantee a suitable purchase. A machine cutting titanium aircraft components faces different demands from one producing aluminum molds. Buyers should compare simultaneous five-axis capability, rotary-axis accuracy, thermal compensation, controller functions, and tool-management options. Service coverage matters just as much. A delayed replacement encoder can stop production for days.

This guide examines five leading machine options for international buyers. The selection considers practical criteria, including work envelope, spindle performance, control usability, automation readiness, and documented support. Independent specifications are preferable to promotional claims. Still, comparisons remain imperfect because manufacturers report accuracy under different testing conditions. That limitation deserves attention.

Deloitte’s manufacturing research continues to emphasize smart-factory investment, connected equipment, and workforce capability. Therefore, the strongest machine may not be the fastest one. It may be the platform that operators can confidently program, maintain, and measure. Global buyers should verify local voltage, training, spare-parts access, software licensing, and compliance requirements before signing a purchase agreement.

Table of Contents [Hide]

1 What Defines a 5-Axis CNC Machine?

2 How 5-Axis CNC Machining Systems Operate

3 Key Types of 5-Axis CNC Machines

4 How to Evaluate Machines for Global Production Needs

5 Essential Factors for International Buyers to Compare Five-Axis CNCs

What Defines a 5-Axis CNC Machine?

A 5-axis CNC machine moves a cutting tool along three linear directions and two rotary axes. The linear axes are usually X, Y, and Z. The rotary axes tilt or rotate the workpiece, spindle, or both. This movement lets the tool approach complex surfaces from changing angles.

True five-axis machining can coordinate all five movements at the same time. That differs from 3+2 machining, where the rotary axes position the part before cutting begins. The distinction matters when buyers compare accuracy, cycle time, and surface quality. A turbine blade, medical component, or contoured mold may need continuous tool orientation. Sharp internal features still require careful programming.

From practical inspection work, I have found that axis count alone proves little. Machine rigidity, rotary-axis accuracy, thermal control, and calibration affect real results. The control system and CAM post-processor must also match the machine’s kinematics. Otherwise, programmed motion may create gouging, vibration, or unexpected tool marks. It is an easy detail to underestimate.

A useful test involves cutting a known five-axis calibration part. Inspect its angular surfaces, hole positions, and blended transitions. Ask for repeatability data under realistic cutting loads. A compact machine may be excellent for small precision parts, while a larger model may suit heavy workpieces better. No machine is perfect. Even experienced operators must review fixturing, collision clearance, and tool reach before production.

Top 5-Axis CNC Machines for Global Buyers: What Defines a 5-Axis CNC Machine?

A 5-axis CNC machine combines three linear axes—X, Y, and Z—with two rotary axes. The chart shows representative industrial travel and rotary-motion values; exact specifications vary by machine configuration.

Linear travel is measured in millimetres. Rotary values show a typical ±110° tilt range for the A/B axis and 360° continuous rotation for the C axis. A 5-axis machine normally uses either A+C or B+C, depending on its table-table, head-table, or swivel-head design.

How 5-Axis CNC Machining Systems Operate

A five-axis CNC machining system moves a cutting tool across three linear axes and two rotary axes. The linear axes control X, Y, and Z positions. Rotary axes tilt or rotate the workpiece, spindle, or tool. This combined movement keeps the cutter aligned with curved surfaces and deep features.

The control unit reads CAM-generated toolpaths and coordinates every axis through interpolation. During a single operation, the tool can move forward while tilting and rotating around the part. This reduces repeated setups, manual repositioning, and alignment errors.

A probe may check workpiece position before cutting. Calibration then connects the machine coordinates with the actual fixture and material.

In practical machining, setup quality often matters more than axis count. A rigid fixture prevents vibration around thin walls. Short tools improve stability, but they may limit access. Collision simulation is essential, although no simulation is flawless. I still verify clearance near clamps and rotary tables. A small angular error can leave visible marks on a polished aerospace or medical component. Cutting speed, feed rate, tool length, and material hardness must be matched carefully. Operators should inspect the first part with calibrated measuring equipment, not rely only on the control screen. Global buyers should also examine service training, spare-part access, software compatibility, and documented accuracy tests.

Five-axis motion is powerful, but it rewards disciplined preparation.

Key Types of 5-Axis CNC Machines

For global buyers, machine architecture matters more than impressive brochures. The main types are trunnion table-table, head-head, and head-table systems.

A trunnion machine rotates the workpiece on two axes. It suits compact parts, impellers, and short tools.

Head-head designs keep heavy workpieces stationary. They offer better access for large aerospace structures.

Head-table machines combine both methods and provide a practical balance.

According to the MarketsandMarkets 2024 CNC machine report, the global CNC machine market is projected to grow from about USD 86.8 billion in 2024 to USD 112.8 billion by 2029. This growth increases buyer interest in flexible five-axis production.

Yet, market growth does not guarantee productivity. A machine with a wide angle range may still struggle with thermal drift, poor chip evacuation, or weak post-processing support. That detail is easy to overlook.

Tips:

Match the machine to your largest real component, not your showroom sample. Check rotary-axis torque, table diameter, collision simulation, and service response times. Ask for test-cut data using your material and tool lengths.

For heavy parts, stationary workholding can reduce setup risk. For small complex parts, a trunnion layout may shorten cycle times. However, these advantages depend on programming quality and operator experience.

I would also budget for calibration. Five-axis accuracy can slowly decline, especially in hot workshops. That is not a dramatic failure, but it can quietly damage consistency.

How to Evaluate Machines for Global Production Needs

Top 5-Axis CNC Machines for Global Buyers

How to Evaluate Machines for Global Production Needs

Global buyers should evaluate a 5-axis CNC machine beyond its advertised travel range. Start with actual parts, materials, and batch sizes. A machine cutting titanium needs different spindle torque and thermal control than one machining aluminum. Measure positioning accuracy and repeatability under production temperatures. ISO 230-2 provides a recognized method for these tests.

Test the difficult part.

The control system also matters. Check simultaneous five-axis performance, probing, collision protection, and postprocessor compatibility. International Federation of Robotics reported 541,302 industrial robot installations worldwide in 2023. This growth signals stronger demand for connected, automated production. However, automation is useful only when data moves reliably between machines, inspection, and planning software. Ask for verified cycle-time records, not optimistic demonstrations.

Service access can decide profitability. Review remote diagnostics, spare-part delivery, training, electrical requirements, and local technical support. Fortune Business Insights valued the global CNC machine market at approximately USD 83.99 billion in 2023. It projects the market to reach USD 128.41 billion by 2032. Those figures indicate expanding demand, but market growth does not guarantee a suitable machine. A smaller machine with stable accuracy may outperform a larger model in real production. No scorecard is perfect. Buyers should run acceptance tests using their own material, tooling, fixtures, and inspection methods.

Top 5th Axis CNC Machines for Global Buyers? – How to Evaluate Machines for Global Production Needs

Rank	Machine Profile	Typical Working Envelope	Spindle Range	Rotary Axis Configuration	Positioning Accuracy	Repeatability	Estimated Installed Power	Best Production Fit	Global-Buyer Evaluation Score
1	High-Speed 5-Axis Machining Center Premium production profile	X: 500–800 mm Y: 400–650 mm Z: 400–600 mm	12,000–20,000 rpm 15–30 kW	Trunnion or swivel-head table ±110° to ±135° tilt 360° rotary axis	0.008–0.015 mm	0.004–0.008 mm	30–55 kVA	Aerospace components, impellers, medical parts, complex molds and high-value export production.	9.4 / 10
2	Heavy-Duty 5-Axis Vertical Center High-volume industrial profile	X: 700–1,200 mm Y: 600–800 mm Z: 600–800 mm	8,000–15,000 rpm 18–37 kW	Large trunnion table ±110° to ±120° tilt 360° rotary axis	0.010–0.020 mm	0.005–0.010 mm	40–70 kVA	Large aluminum and steel parts, energy equipment, automotive tooling and long-cycle production.	9.1 / 10
3	Compact 5-Axis Mill Space-efficient production profile	X: 300–500 mm Y: 300–450 mm Z: 300–450 mm	12,000–24,000 rpm 7.5–18.5 kW	Integrated rotary table ±110° to ±120° tilt 360° rotary axis	0.008–0.018 mm	0.004–0.009 mm	18–35 kVA	Small precision components, dental and medical parts, prototypes, electronics tooling and job shops.	8.9 / 10
4	Universal 5-Axis Production Mill Flexible multi-market profile	X: 500–900 mm Y: 500–700 mm Z: 500–700 mm	10,000–18,000 rpm 15–30 kW	Swivel rotary table or swivel head ±120° to ±135° tilt 360° rotary axis	0.010–0.020 mm	0.005–0.010 mm	30–55 kVA	General contract manufacturing, pump and valve parts, aircraft brackets and mixed-material production.	8.7 / 10
5	Large-Format 5-Axis Gantry Machine Oversized-component profile	X: 1,500–3,000 mm Y: 1,000–2,000 mm Z: 800–1,500 mm	6,000–12,000 rpm 22–45 kW	Dual rotary table or swivel head ±100° to ±120° tilt 360° rotary axis	0.020–0.040 mm	0.010–0.020 mm	50–90 kVA	Large molds, marine components, wind-power parts, heavy equipment and oversized aerospace structures.	8.4 / 10
Evaluation note: The figures are representative specification ranges commonly published for comparable 5-axis CNC machine classes. Actual performance depends on machine construction, thermal compensation, cutting tools, workholding, control system, installation quality and material. Before international purchase, verify voltage and frequency compatibility, CE or other required compliance documentation, maximum workpiece weight, shipping dimensions, service coverage, spare-parts availability and operator training requirements.

Essential Factors for International Buyers to Compare Five-Axis CNCs

Top 5 Axis CNC Machines for Global Buyers?

International buyers should compare five-axis CNC machines through measurable production needs, not brochure claims. Evaluate simultaneous-axis accuracy, spindle torque, rotary-table stiffness, work-envelope access, and thermal stability. A machine cutting titanium needs different capabilities from one machining aluminum molds. Ask for test-cut data, repeatability records, and calibration procedures.

Ownership costs matter across borders. Compare energy consumption, tool capacity, maintenance intervals, software compatibility, training, and local service response. Deloitte’s 2024 Smart Manufacturing Survey found that 92% of manufacturing executives view smart manufacturing as a major competitiveness driver within three years. That supports connected monitoring, but connectivity alone does not guarantee better parts. A practical test is useful: run your material, tooling, tolerances, and cycle strategy before purchase.

The International Federation of Robotics reported 4.28 million industrial robots operating worldwide in 2023. This signals broader automation adoption and a growing need for reliable data exchange. Buyers should check controller interoperability, remote diagnostics, cybersecurity controls, and operator training. Total cost of ownership can exceed the purchase price when imported spare parts, duties, downtime, and specialist travel are included.

A neat spreadsheet can still mislead.

I would score five candidate machines using weighted criteria, then challenge the weights with production engineers and machinists. The fastest machine may not be the most dependable one.
