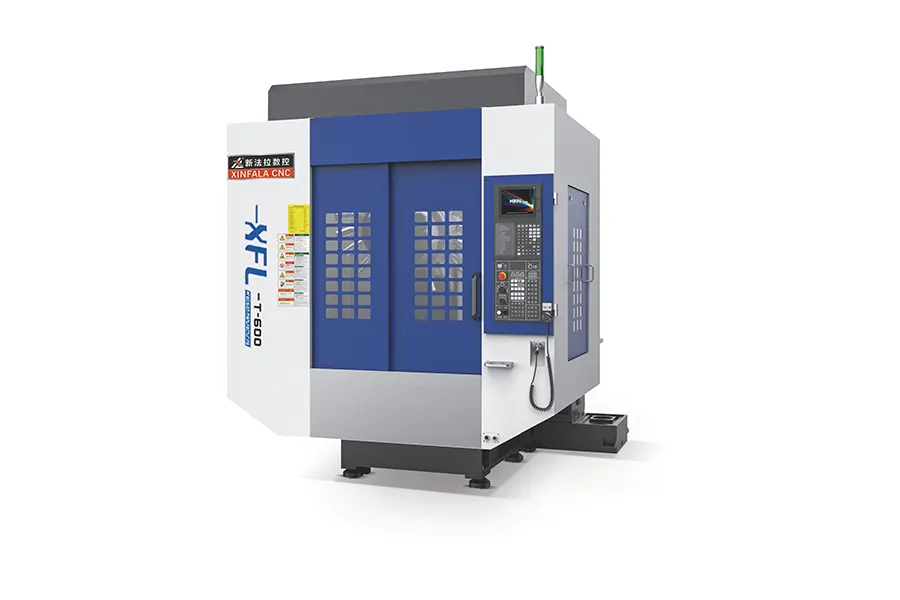

T6 Drilling and Tapping Center for Efficient Machining

Direct-Drive High-Speed Spindle – Precision & Productivity in One Package
A built-in high-power synchronous motor drives the spindle directly, eliminating transmission losses and delivering 20,000 rpm with sustained high torque. Achieve “zero-backlash” high-speed milling: profile accuracy ≤ 3 µm, surface finish Ra ≤ 0.2 µm, and effortless machining of hardened steel, aluminum alloys, and engineering ceramics.

In-House Servo Tool Magazine – 1.8 s Lightning Tool Change
Our self-developed ATC couples a servo motor with a precision cam indexer for dual-positioning. Chip-to-chip time is only 1.8 s with repeatability ± 0.005 mm. 24- or 30-station configurations accommodate mixed large-diameter and heavy tools, keeping the spindle running and raising OEE by over 15 %.

Steep Chip-Flush Angle + High-Pressure Coolant – Always a “Dry” Table
A 25° sloped chip ramp and 7 MPa high-pressure flush evacuate aluminum or graphite chips within 3 s into the rear conveyor. Coolant return velocity increases 40 %, tank level fluctuation < 0.5 mm, eliminating secondary-cutting interference—ideal for unmanned night shifts.

Mechatronic Speed-Loop – Slashing Non-Cutting Time
Full-closed-loop synergy among servo drives, ball screws, linear guides and the built-in motor boosts transmission stiffness 30 % and following error < 1 µm. Acceleration/deceleration time is cut 25 %, cutting time ratio climbs to 85 %, energy-per-part drops 18 %, and piece cost falls immediately.
