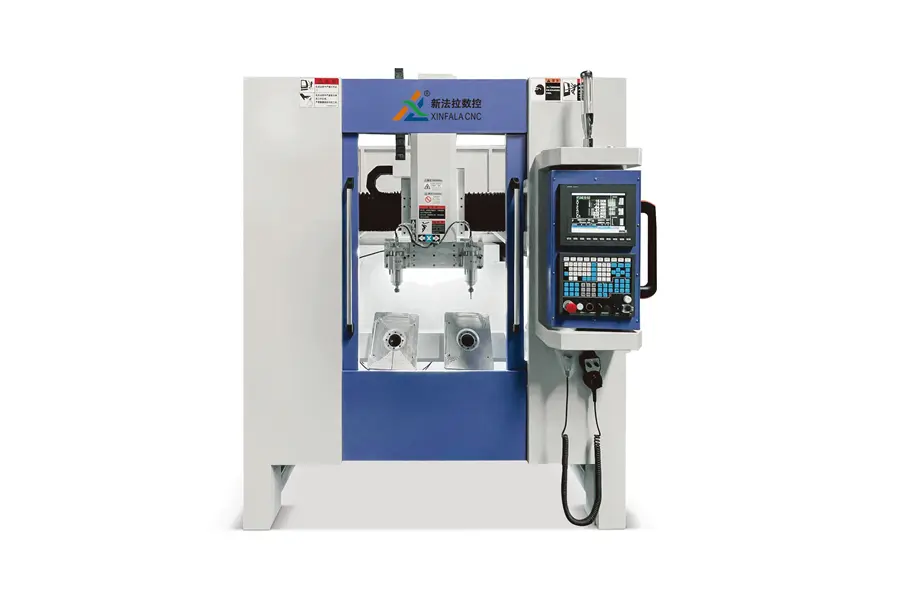

540 Dual Station Five Axis Machining Center

● Adopting a dual position rotating worktable,carving can be freely adjusted according to the angles of different surfaces of the work piece during processing.Not only can a single worktable rotate for processing,but two worktables can also rotate synchronously or reverse for processing.
● The functions are more diversified,the performance is stronger,the speed is faster,and the efficiency is higher;

● We use imported high-quality AC servo motors,ball screws,linear slides,and electrical components to ensure that the equipment has high processing accuracy.

● Equipped with intelligent processing boundary protection,break point memory,fault detection,power-off recovery and other functions to  prevent mechanical collisions caused by design files being too large or operational errors;Suitable for high-speed milling,contour machining, precision machining,drilling and milling holes,and 3D machining of any non-metallic material.

    Contact us
    product details

    PRODUCT FUNCTION

    Function: cutting, punching, milling, trimming, polishing

    TECHNICAL PARAMETER

    Machine tool category Customized high-end configuration (high-end configuration,exclusive customization) Standard Utility Model (Classic Configuration,Stable and Reliable) Affordable model(basic functions,affordable)
    XYZ axis travel Single workstation500*500*400mm Dual station 500*500*400mm*2 Dual station 500*500*400mm*2
    Machinable Materials Metal materials:copper,aluminum,iron,steel,etc Non metallic materials:composite materials, plastic products,wooden products,etc Non metallic materials:composite materials, plastic products,wooden products,etc
    Body configuration Cast iron bed,annealed, with a total weight of approximately 5 tons Thickened welded bed body,annealed treatment, total weight of approximately 2.5 tons Welded bed body,annealed treatment, total weight of approximately 1.5 tons
    Drive system German brand guide rail,full screw, grating ruler,reducer Taiwanese brand guide rails,screws, racks,reducers Domestic brand guide rails, screws,racks,reducers
    Motor and Drive Optional German Siemens,Heidenhain motor drive Taiwan's SYMNTEC AC servo motor drive Domestic brand communication servo motor drive
    Control system Optional German Siemens, Heidenhain Control System Taiwan's SYNTEC control system Domestic brand Shanghai Lynuc System
    Spindle configuration Optional Ouli,Haiteke,HSD spindle 15KW Domestic brand 5.5*2KW automatic tool changing spindle Domestic brand Changlong 2.2*2KW air-cooled spindle
    Options Equipped with RTCP function,vacuum adsorption,and a disc 8-tool magazine Equipped with RTCP function,vacuum adsorption,and a disc 8-tool magazine No RTCP function,no vacuum adsorption
    Warranty period Complete machine warranty for five years (excluding vulnerable parts) Complete machine warranty for three years ( excluding vulnerable parts) One year warranty for the entire machine (excluding vulnerable parts)

    PRODUCT application

    Dual Station Five Axis Machining Center (5)

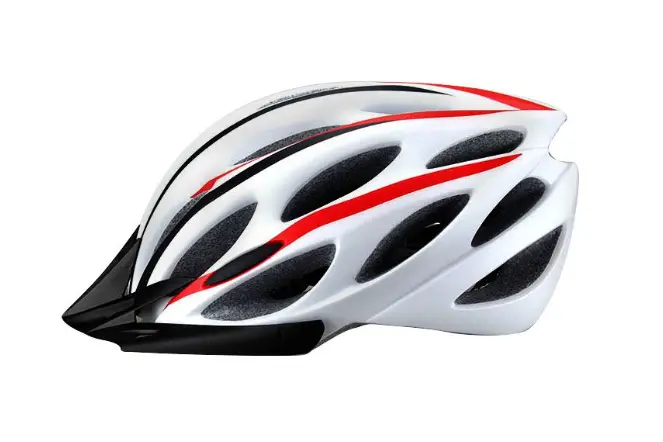

    Vacuum-Formed Helmet

    Dual Station Five Axis Machining Center (2)

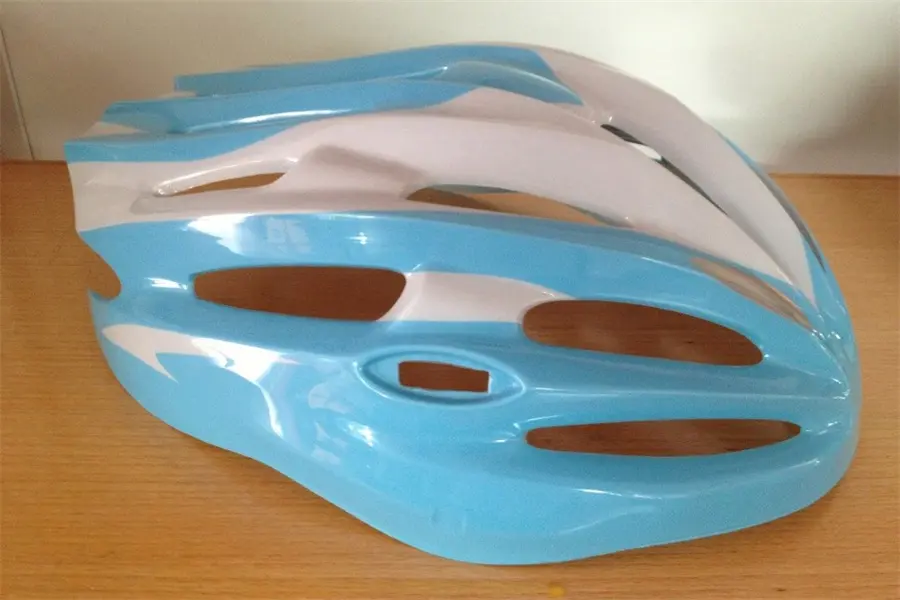

    Carbon Fiber Helmet

    Dual Station Five Axis Machining Center (4)

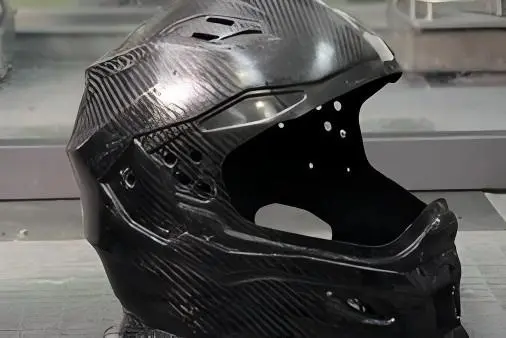

    Craft Sculpture

    Dual Station Five Axis Machining Center (3)

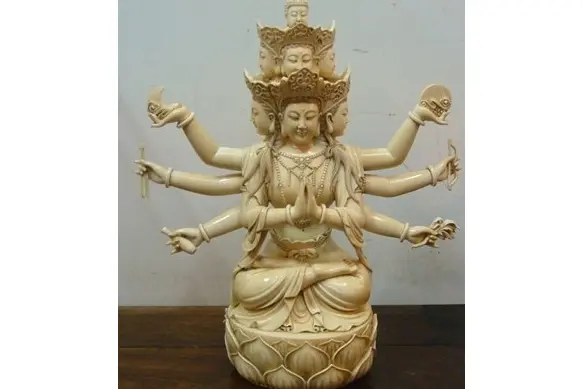

    Crafts Sculpture
