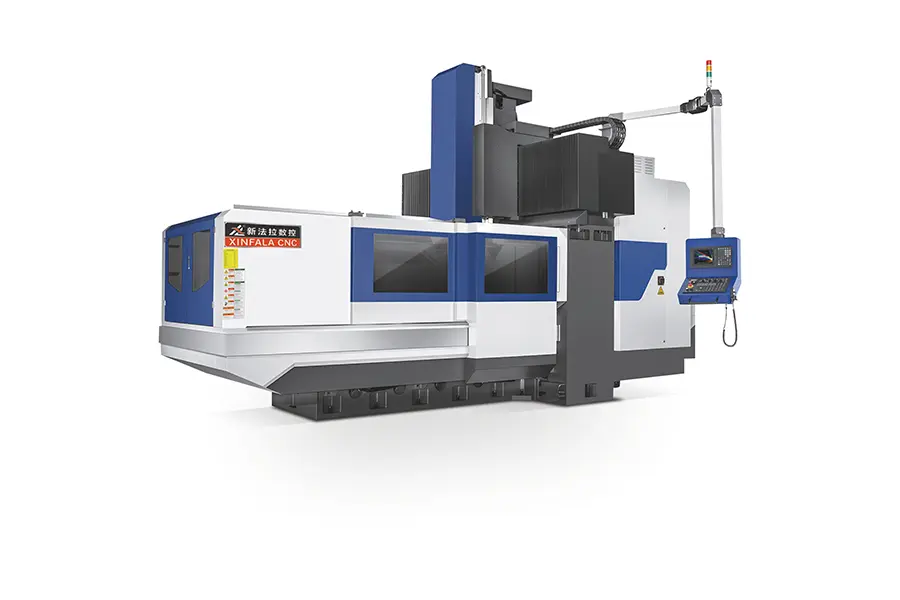

3020 Gantry Machining Center for Robust Performance

The X-Y linear guide CNC gantry machining center is engineered for medium to large-scale part processing, delivering fast three-axis movement that significantly enhances the overall motion rate and machining efficiency. Its thick-section crossbeam design provides exceptional rigidity for the Y-axis structure, while the double-sided equal-load roller linear guides maximize Y-axis cutting stability and ensure reliable support under heavy machining loads.

The X-axis dual-track roller linear guide design, combined with a large-span slide rail configuration and a wide, reinforced base structure, ensures balanced load distribution. This improves both load-bearing capacity and motion accuracy, enhancing overall machine performance and service life.

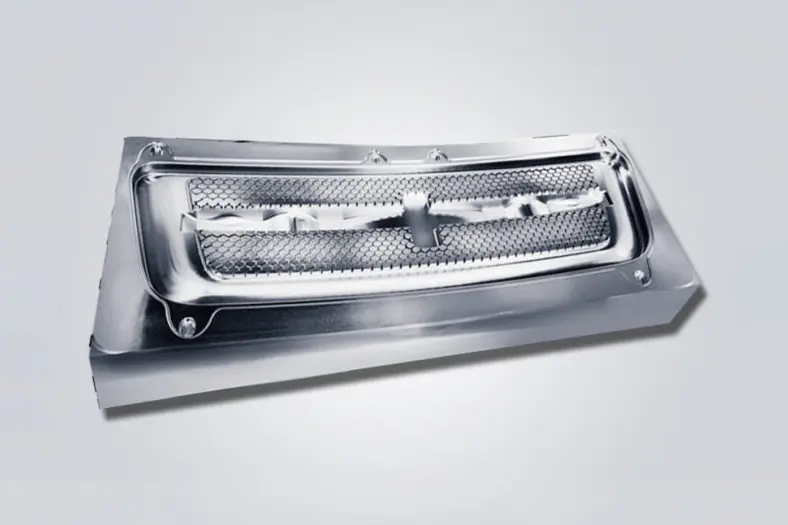

For the Z-axis, a nitrogen counterweight system with an oil-gas separation pressure accumulator replaces traditional hydraulic systems, eliminating directional delays. This allows the Z-axis to achieve an acceleration rate of up to 0.5G, while an external anti-slip safety device guarantees stability during power failures, making it highly reliable for mold and precision machining.

The Z-axis square slide rail, finished with precision scraping technology, provides optimal rigidity and low-friction motion characteristics. The direct-coupled lubrication system ensures 100% reliable lubrication, extending mechanical longevity.

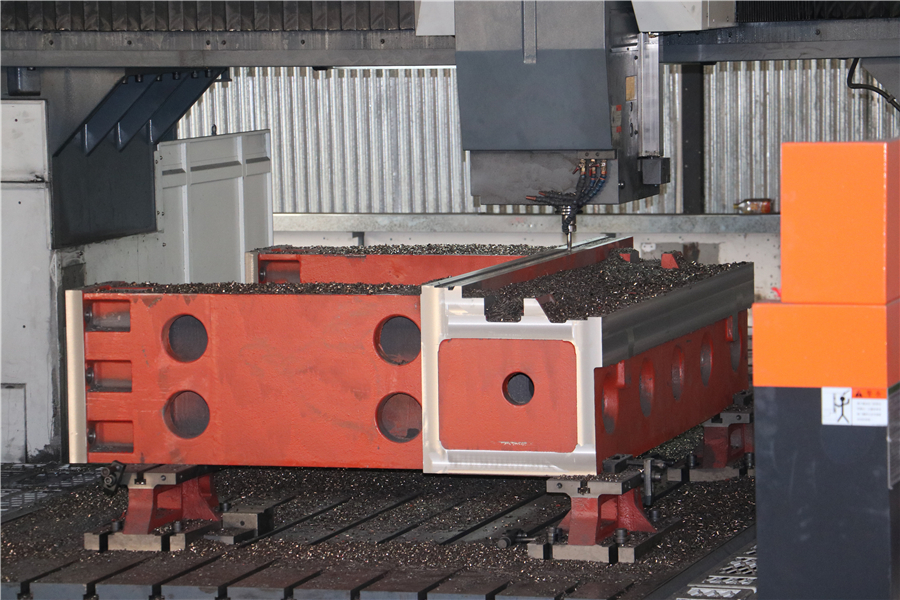

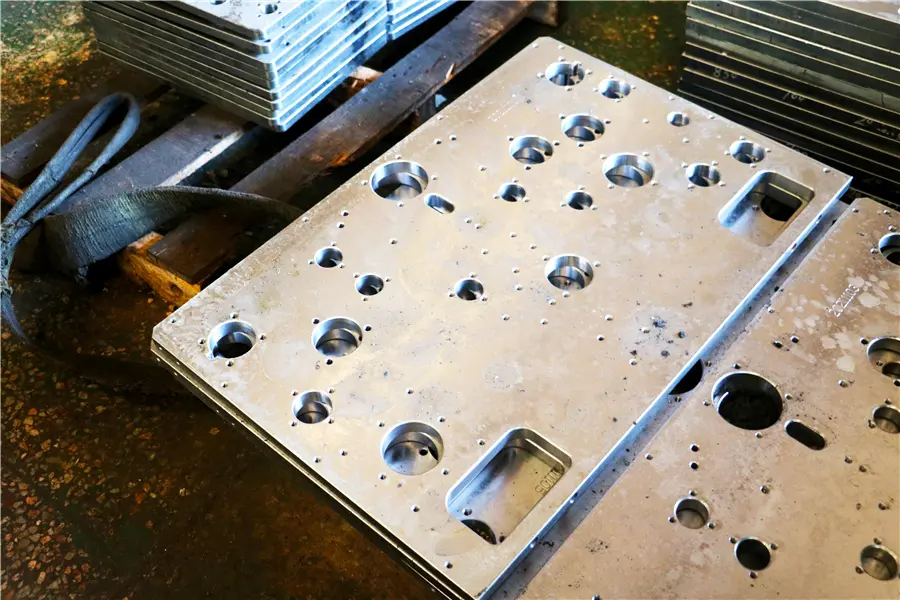

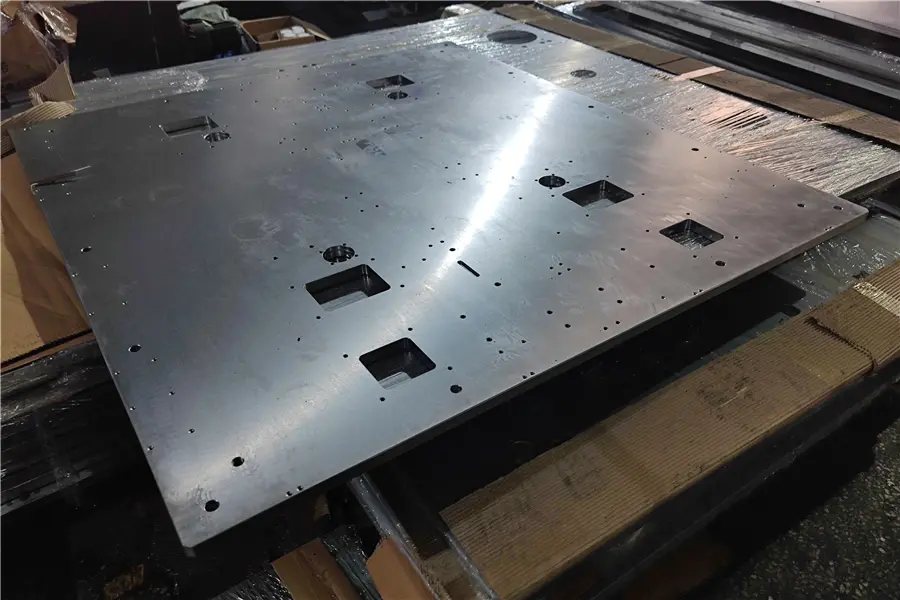

This machining center supports milling, boring, drilling (drilling, reaming, tapping), thread cutting, and countersinking, offering a versatile platform for high-precision manufacturing.
