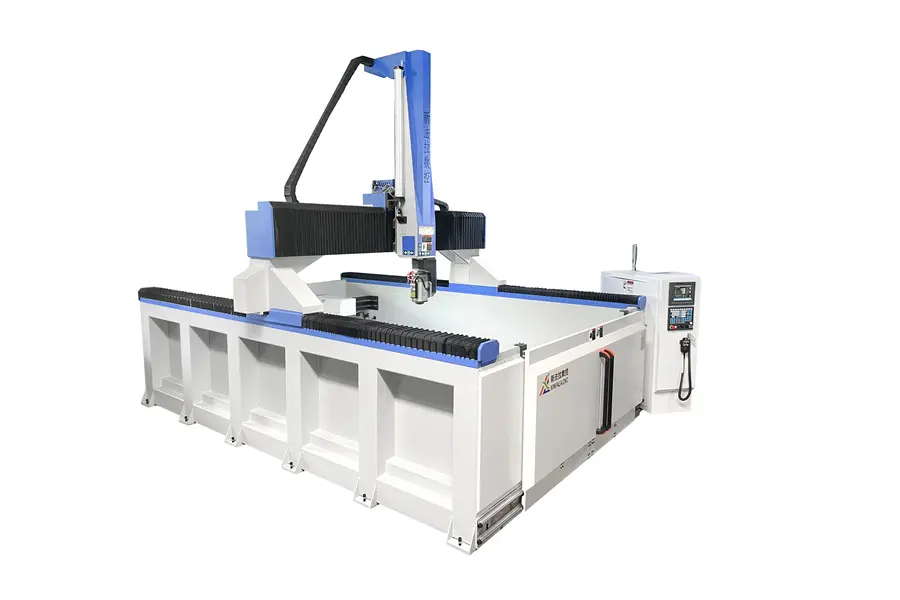

5.2030, 3050 Bridge Type Gantry Five Axis Machining Center.jpg
Bridge Type Gantry Five Axis Machining Center (2).jpg
Bridge Type Gantry Five Axis Machining Center (3).jpg
Bridge Type Gantry Five Axis Machining Center (4).jpg

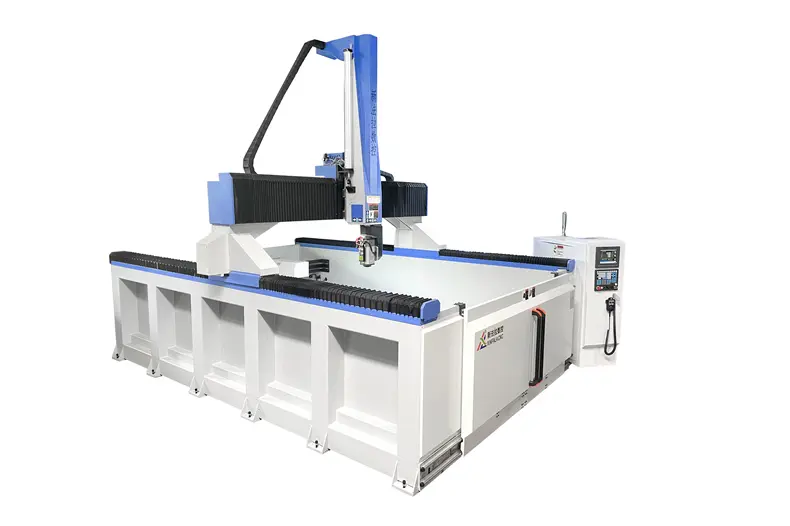

Bridge Type Gantry Five Axis Machining Center (5).jpg
Bridge Type Gantry Five Axis Machining Center (6).jpg

2030, 3050 Bridge Type Gantry Five Axis Machining Center

● This machine is a CNC five axis machining center that integrates five sided milling, oblique drilling, slotting, chamfering, engraving, and milling;

● Adopting a high rigidity gantry bridge structure and undergoing strict secondary tempering aging treatment to eliminate internal stress, the cutting rigidity and smoothness of the machine tool are effectively ensured, achieving long-term stable use without deformation;

● X-axis double row widened linear guide, Z-axis adopts imported four row steel bl linear guide, self-lubricating slider, equal force in all directions during processing, ensuring mechanical accuracy and strength;

● We use imported high-quality AC servo motors, ball screws, linear slides, and electrical components to ensure that the equipment has high processing accuracy.

    Contact us
    product details

    PRODUCT FUNCTION

    Function: Cutting, punching, milling, trimming, polishing

    TECHNICAL PARAMETER

    Machine tool category Customized high-end configuration (high-end configuration, exclusive customization) Standard Utility Model (Classic Configuration, Stable and Reliable) Affordable model (basic functions, affordable)
    XYZ axis travel 2000*3000*1000mm 3000*5000*1200mm 2000*3000*1000mm 3000*5000*1200mm 2000*3000*1000mm 3000*5000*1200mm
    Machinable materials Metal materials:copper, aluminum, iron, steel, etc Non metallic materials:composite materials, plastic products, lost foam wood molds, casting molds, etc Non metallic materials:composite materials, plastic products, lost foam wood molds, casting molds, etc
    Body configuration Cast iron bed, annealed, with a total weight of approximately 12 tons Thickened welded bed body, annealed treatment, total weight of approximately 8 tons Welded bed body, annealed treatment, total weight o approximately6 tons
    Drive system German brand guide rail, full screw, grating ruler, reducer Taiwanese brand guide rails, screws, racks, reducers Domestic brand guide rails, screws, racks, reducers
    Motor and Drive Optional German Siemens, Heidenhain motor drive Taiwan's SYNTEC AC servo motor drive Domestic brand communication servo motor drive
    Control system Optional German Siemens, Heidenhain Control System Taiwan's SYNTEC control system Domestic brand Shanghai Lynuc System
    Spindle configuration Optional ouli, Haiteke, HSD spindle 15KW Domestic brand 12KW automatic tool changing spindle Domestic brand Changlong 9KW air-cooled spindle
    Options Equipped with RTCP function, vacuum adsorption, and a disc 8-tool magazine Equipped with RTCP function, vacuum adsorption, and a disc 8-toolmagazine No RTCP function, no vacuum adsorption
    Warranty period Complete machine warranty for five years (excluding vulnerable parts) Complete machine warranty for three years (excluding vulnerable parts) One year warranty for the entire machine (excluding vulnerable parts)

    PRODUCT application

    Bridge Type Gantry Five Axis Machining Center (4)

    Starry Sky Room

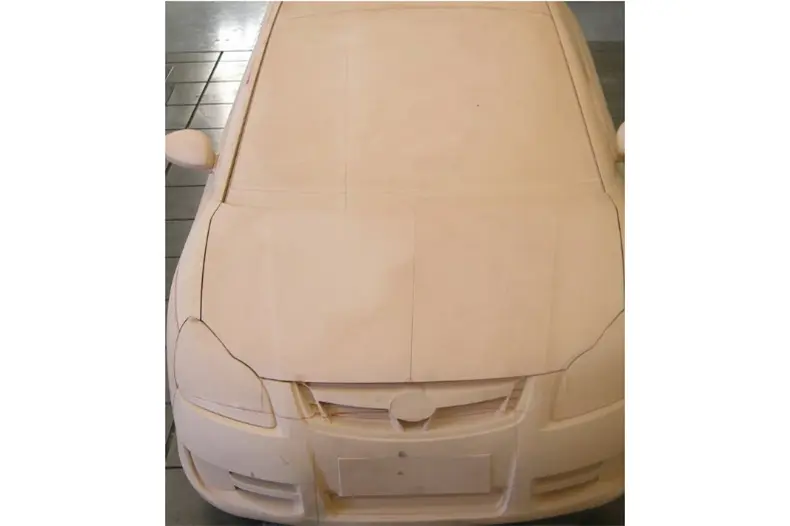

    Bridge Type Gantry Five Axis Machining Center (2)

    Car Model

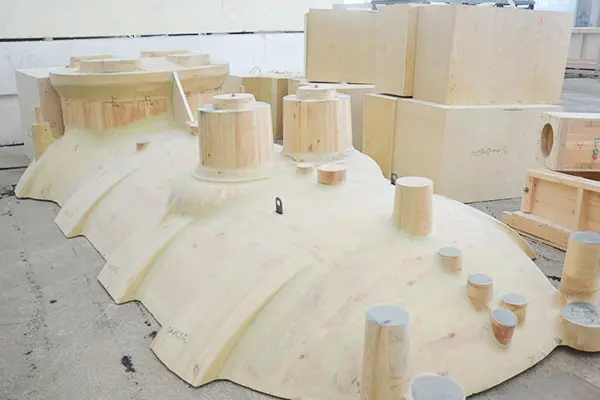

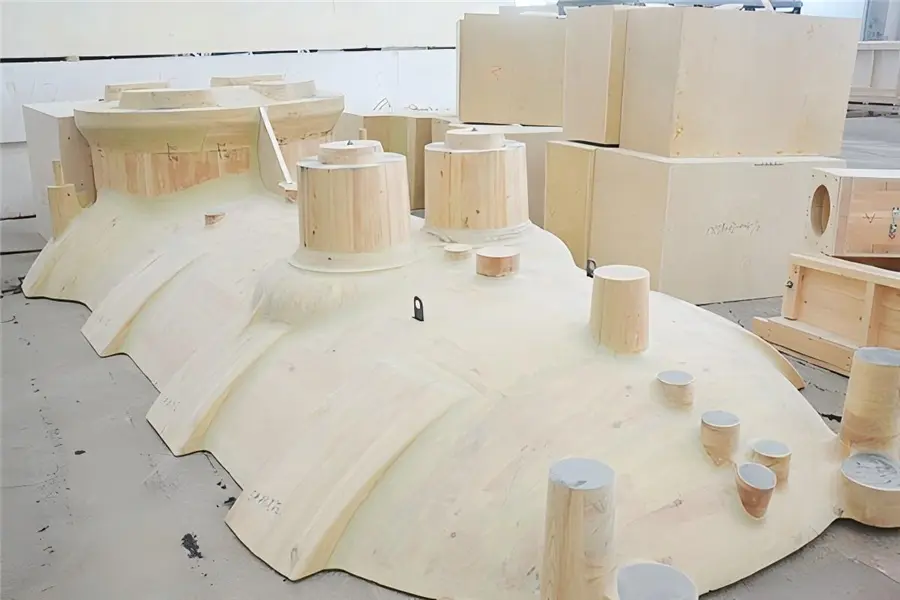

    Bridge Type Gantry Five Axis Machining Center (3)

    Cast Wooden Model

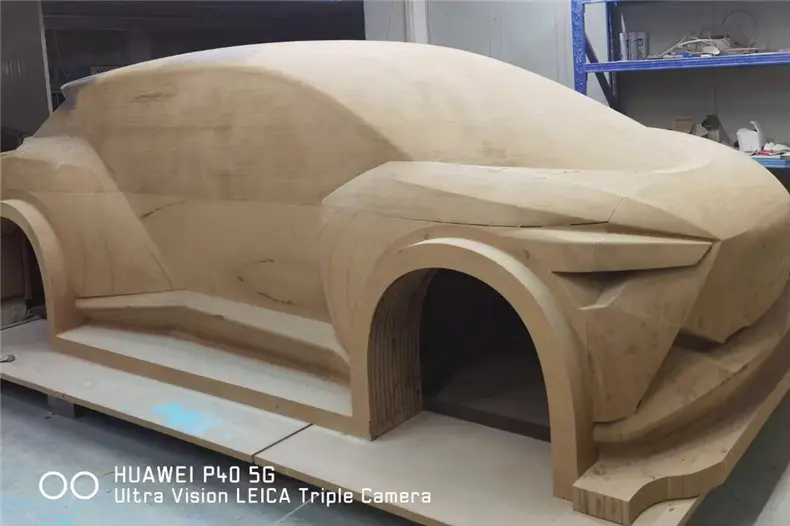

    Bridge Type Gantry Five Axis Machining Center (6)

    Car Model
