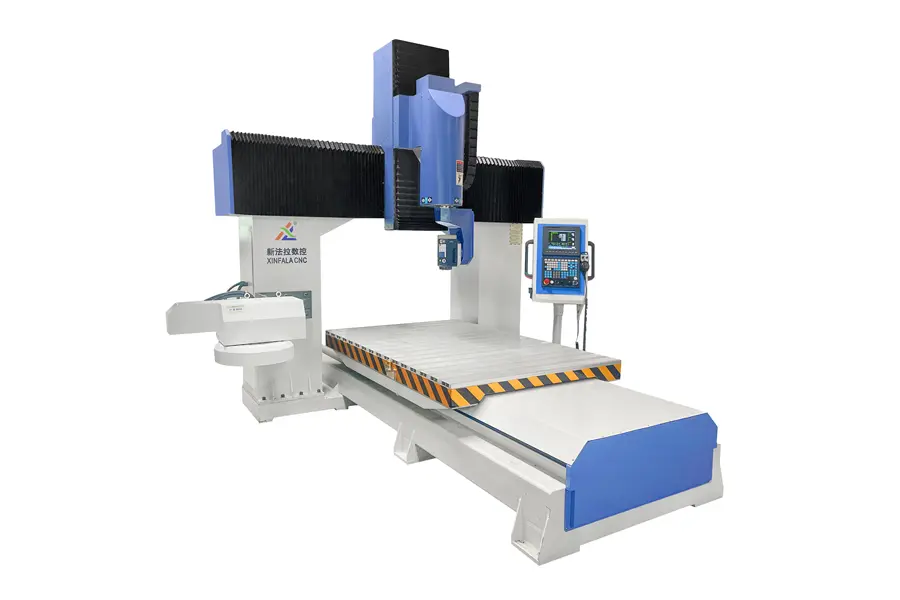

1320 Five Axis Engraving Machine

● The machine is a CNC five axis machining center that integrates five sided milling, oblique drilling, slotting, chamfering, engraving, and milling;

● Adopting a fixed column and fixed beam design, the table motion improves processing efficiency, ensuring that the machine tool has the best dynamic motion characteristics and optimal driving rigidity, good stability,and a wide range of processed parts;

● Imported high-quality AC servo motors,ball screws,linear slides, and electrical components can be used to ensure high machining accuracy of the equipment;

● Equipped with intelligent processing boundary protection, break point memory, fault detection, power-off recovery and other functions to prevent mechanical collisions caused by design files being tool large or operational errors;

    Contact us
    product details

    PRODUCT FUNCTION

    Function: cutting, punching, milling, trimming, polishing

    PRODUCT Description

    ● Versatile Applications and Suitability

    The machine is a high-performance five-axis CNC machining center that integrates multiple functions including side milling, oblique hole machining, slotting, chamfering, engraving, and precision milling. It is specifically designed for complex surfaces, multi-angle features, and high-precision composite processing. It is suitable for high-end manufacturing fields such as aerospace precision structural components, medical devices, automotive panel molds, impeller blades, core components of energy equipment, and precision instruments. It is particularly well-suited for flexible and intelligent production lines with small-to-medium batch sizes, high variety, and high mix of parts.

    ● Robust Structure and Precision Performance

    The equipment adopts a high-rigidity structure with fixed columns and fixed beams, combined with a moving table layout. This not only enhances the stability and rigidity of the machining area but also significantly optimizes dynamic response performance and cutting anti-vibration capability. The core motion units are equipped with imported high-quality AC servo motors, precision ball screws, and heavy-duty linear guides. Coupled with a highly reliable electrical control system, the machine maintains exceptional positional accuracy and repeatability even under high-speed and heavy-load conditions, ensuring long-term machining consistency across a variety of materials—from aluminum alloys to high-temperature alloys—and workpieces of different sizes and complexities.

    ● Intelligent Functions and Operational Safety

    The system integrates user-friendly functions such as intelligent machining boundary protection, real-time breakpoint memory and automatic backtracking, full-process fault monitoring and diagnosis, and one-click recovery after power outages. These features effectively prevent equipment collisions and downtime caused by program errors, operational mistakes, or file overruns, significantly enhancing production safety and equipment utilization. It is especially suitable for modern smart factory applications requiring continuous operation and unmanned shifts.

    TECHNICAL PARAMETER

    Machine tool category Customized high-end configuration (high-end configuration, exclusive customization) Standard Utility Model (Classic Configuration, Stable and Reliable) Affordable model (basic functions, affordable)
    XYZ axis travel 1300*2000*800mm 1300*2000*800mm 1300*2000*800mm
    Machinable Materials Metal materials:copper, aluminum, iron, steel, etc Non metallic materials:composite materials, plastic products, wooden products, etc Non metallic materials:composite materials, plastic products, wooden products, etc
    Body configuration Cast iron bed, annealed, with a total weight of approximately 7 tons Thickened welded bed body, annealed treatment, total weight of approximately 5 tons Welded bed body, annealed treatment, total weight of approximately 3 tons
    Drive system German brand guide rail, full screw, grating ruler, reducer Taiwanese brand guide rails, screws, racks, reducers Domestic brand guide rails, screws, racks, reducers
    Motor and Drive Optional German Siemens, Heidenhain motor drive Taiwan's SYNTEC AC servo motor drive Domestic brand communication servo motor drive
    Control system Optional German Siemens, Heidenhain Control System Taiwan's SYNTEC control system Domestic brand Shanghai Lynuc System
    Spindle configuration Optional ouli, Haiteke, HSD spindle 10KW Domestic brand 9KW automatic tool changing spindle Domestic brand Changlong 6KW air-cooled spindle
    Options Equipped with RTCP function, vacuum adsorption, and a disc 8-tool magazine Equipped with RTCP function, vacuum adsorption, and a disc 8-tool magazine No RTCP function, no vacuum adsorption
    Warranty period Complete machine warranty for five years (excluding vulnerable parts) Complete machine warranty for three years (excluding vulnerable parts) One year warranty for the entire machine (excluding vulnerable parts)

    PRODUCT application

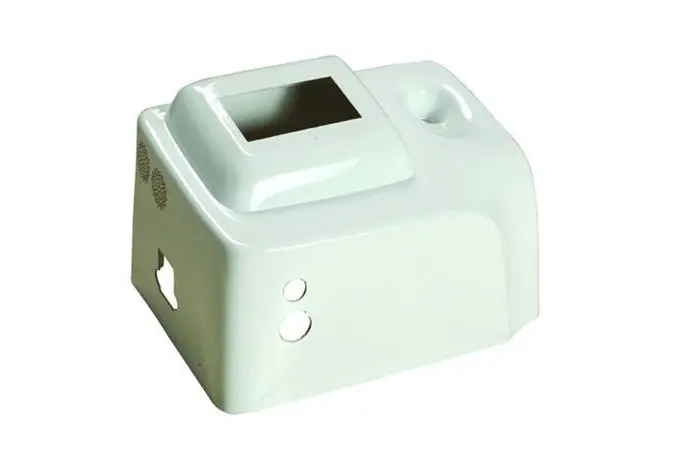

    Dual Station Five Axis Machining Center (2)

    Medical equipment casing

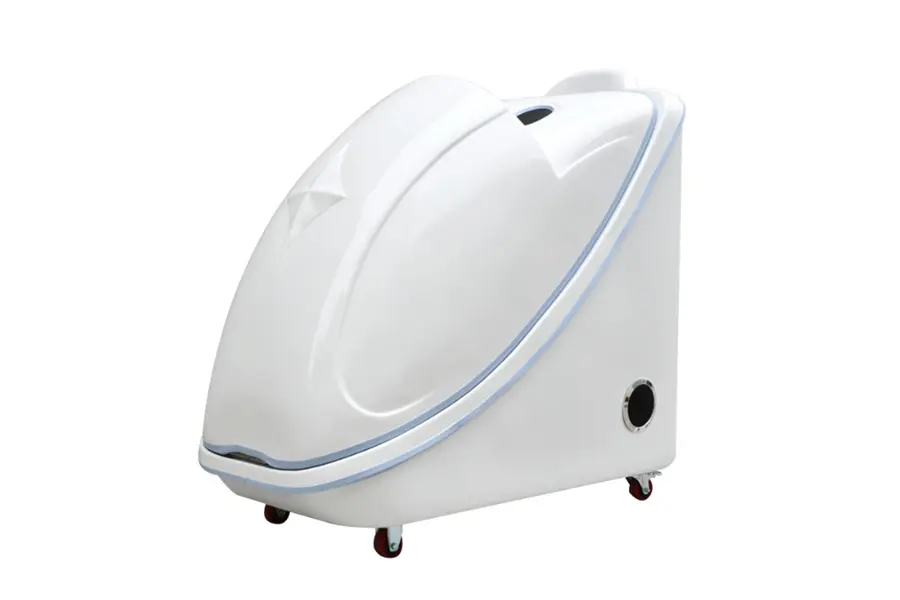

    Dual Station Five Axis Machining Center (3)

    Health steam chamber

    Dual Station Five Axis Machining Center (4)

    Roof luggage box

    Dual Station Five Axis Machining Center (5)

    Computer case
