1270 Vertical Milling Machine for Precision Metalworking
PRODUCT FUNCTION
Functions: Milling, boring, drilling, reaming, tapping, threading, and other multi-process machining;
PRODUCT DESCRIPTION

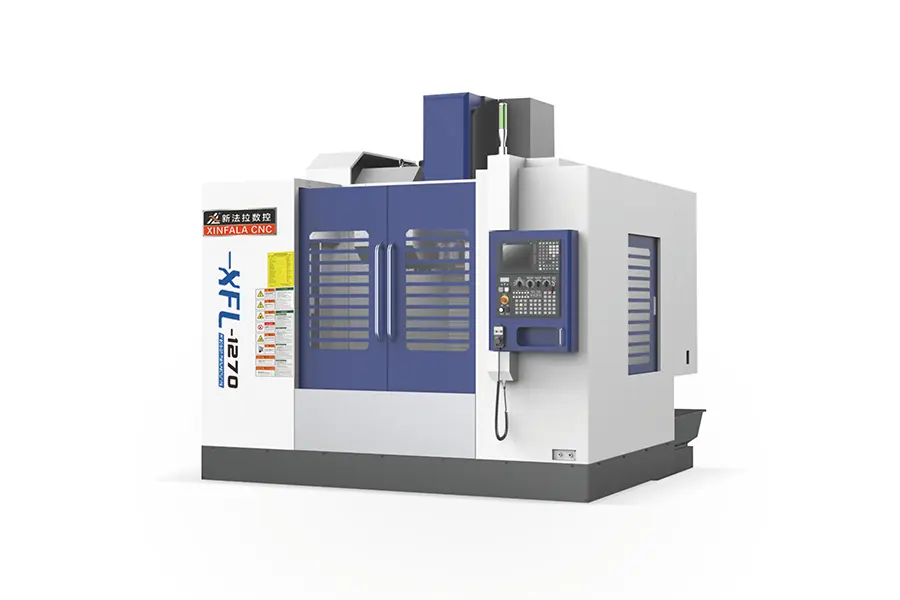

This CNC machining center adopts a fixed column structure with a cross slide table, supported by an extra-large stable base and high-rigidity, large-span A-frame columns. The robust design minimizes deformation during high-speed and heavy-duty cutting, ensuring long-term stability and machining precision.
The high-speed, high-precision spindle unit is designed with a labyrinth front-end structure and an air curtain protection system, effectively preventing contamination. A circulating cooling device controls spindle temperature rise, reducing thermal deformation and ensuring consistent machining accuracy.
All three axes utilize high-rigidity linear guideways, offering low friction, low noise, and smooth motion performance. Standard configurations include rear water cooling and chip removal, a rear-mounted water tank, and a labyrinth-type filtration system, ensuring clean cutting fluid supply and efficient chip management for optimized machining conditions.
Powered by a high-performance CNC system, the machine provides stable control, rich CNC machining functions, and intelligent auxiliary operations, making it both efficient and user-friendly.
TECHNICAL PARAMETER
| Project | Unit | XFL-1160 (Three-line track) | XFL-1270 (Two lines and one hard) |
| X/Y/Z axis travel | mm | 1100/600/600 | 1200/700/600 |
| Workbench dimensions | mm | 1200*600 | 1360*700 |
| Workbench load capacity | kg | 1000 | 1000 |
| Workbench T-slot specifications | 5-18*100 | 5-18*122 | |
| Distance from spindle end face to workbench center | mm | 130-730 | 87-687 |
| Spindle taper specifications, speed | rpm | BT40-150-12000 (Direct connection) | BT50-155-8000 (belt) |
| spindle motor | kw | 7.5/11 | 11/15 |
| X/Y/Z axis motor power | kw | 3/3/3 | 3/3/3 |
| X/Y/Z axis fast displacement | m/min | 36/36/36 | 20/20/18 |
| Maximum cutting speed | m/min | 10 | 10 |
| X/Y/Z axis positioning accuracy | mm | 0.008/0.005/0.005 | 0.008/0.008/0.008 |
| X/Y/Z axis repeat positioning accuracy | mm | 0.006/0.004/0.004 | 0.006/0.006/0.006 |
| X/Y/Z axis rail specifications (roller) | 45/45/45 | 55/45/Hartschiene | |
| X/Y/Z axis lead screw specifications (ball) | 4016/4016/4016 | 5010/5010/5010 | |
| Machine weight (approx.) | kg | 5500 | 8500 |
| Machine dimensions (L x W x H) (approx.) | mm | 3170*2910*2682 | 3515*2582*2739 |
| CNC system | MITSUBISHI / FANUC | MITSUBISHI / FANUC |
PRODUCT application
Widely applied in industries such as:
New energy: Battery housings, energy storage components
3C electronics: Precision shells, computer casings, connectors
Military & aerospace: Lightweight brackets, structural elements, turbine parts
Automotive: Engine housings, precision molds, car body components
Small molds: Injection, stamping, and die-casting molds
Medical equipment: Surgical tools, implants, orthopedic devices
Ideal for the processing of small to medium-sized plates, discs, shells, precision parts, and molds.
Aluminum Mold
Valve Processing
Machining of Disc-Shaped Parts
Box Body Processing
